Positioning Antennas

GNSS Antennas for Embedded Applications

1143 MHz - 1610 MHz

GNSS Antennas for Embedded Applications are a solution for the positioning of equipment for land, aerospace and maritime applications.

Referencias:

  • 304-081 -
  • 304-066 -

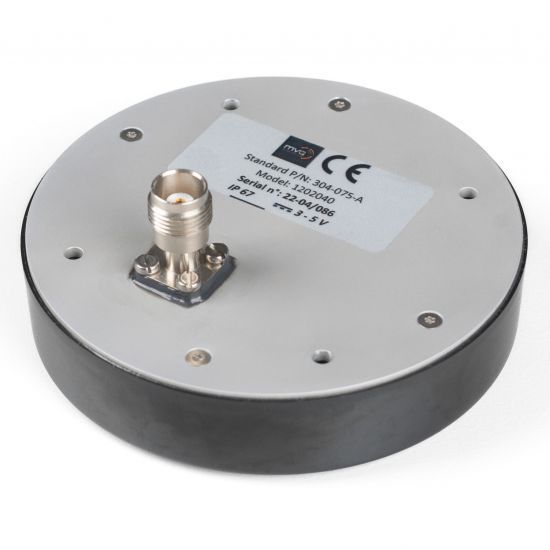

  • 304-075 -

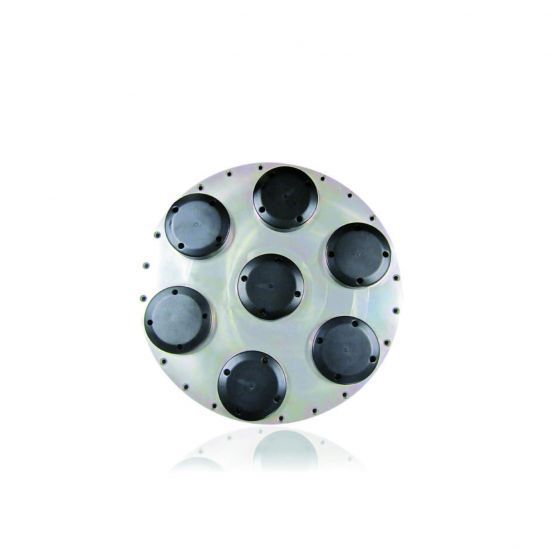

  • CRPA 304-081

TECHNICAL PERFORMANCE

  • Hemispherical pattern
  • Low profile
  • Multi-path immunity
  • Wideband or multi-band behavior

DESIGN

  • Resists harsh environmental conditions

DELIVERED DOCUMENTS

  • Conformity certificate (measured VSWR)
  • Instructions manual
  • Measured radiation patterns

RELATED STANDARD

  • MIL STD 810
  • GAM EG 13
  • RTCA DO-160/ EUROCAE - ED14

EQUIPMENT

  • Single radiated element on ground plane
  • Integrated mounting flange
