EMC Test Chambers

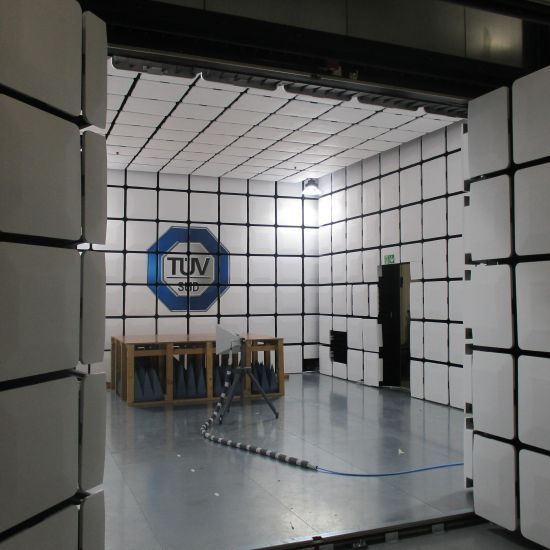

CISPR25 Chamber

1 MHz - 18000 MHz

The CISPR25 chamber is designed for benchtop testing of automotive components and wiring harnesses. The MVG CISRP25 chamber is designed for the requisite 1 m test distance and for a “typical bench” configuration of 2.5 m x 1.0 m. The unique design requires less volumetric space than traditional absorbers and still provides the volume required to have the requisite distances between the EUT and the walls and the absorber and the walls & ceiling. The chamber is designed with anechoic treatment that meets the specified attenuation in the CISRP25 standard, and it is designed to meet the Long Wire testing specified in Annex J. The polypropylene absorber does not undergo the typical age-related deterioration of the typical “foam” polyurethane absorbers. The UH-series, polypropylene absorber is also applicable to the radar pulse testing required in some automotive test standards.

CISPR25 Chamber


  • Automotive benchtop (components, wiring harnesses) testing at 1 m distance
  • Radiated emissions and immunity
  • High power radar pulse measurements


  • Compact dimensions: 5.6 m x 5.1 m x 3.5 m (inside, shield-to-shield)
  • Designed for automotive bench-top testing of 1 m distances: applicable for CISRP25, ISO 11452-2, and other automotive standards (SAE, OEMs, etc)
  • Customized versions available
  • Hybrid anechoic treatment – Provides better performance for low frequency testing
  • Unique HyPyr-Loss, polypropylene absorber. Closed cell for better repeatability and longevity (good for clean-room environments)
  • Available as a turnkey solution with chamber and system
  • Wider 1.5 m door using unique MVG Door Designs
  • Meets CISPR25 attenuation specs and Annex J performance validation
