Reference Antennas

Magnetic Dipoles

652 MHz - 5637 MHz

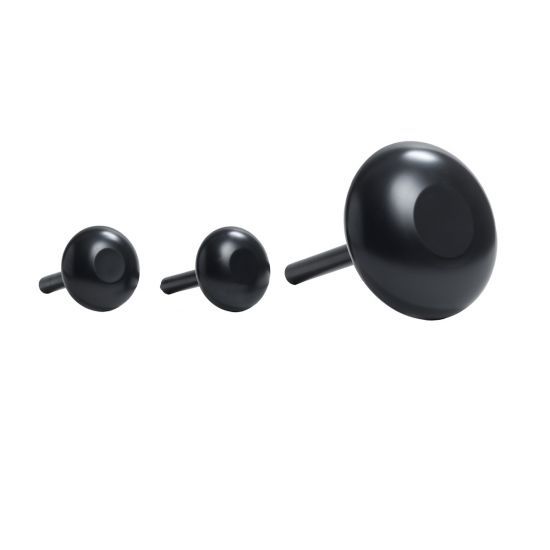

Magnetic Dipoles are used for gain reference, efficiency reference for low gain antennas or for a chamber reflectivity evaluation. The Magnetic Dipole or magnetic loop antenna is complementary to the electrical dipole, with a similar radiation pattern but in cross polarization. CTIA/3GPP low gain antenna measurement.

Références:

  • MD665 -
  • MD720 -
  • MD760 -
  • MD836 -
  • MD880 -
  • MD900 -
  • MD945 -
  • MD1230 -
  • MD1480 -
  • MD1575 -
  • MD1730 -
  • MD1800 -
  • MD1840 -
  • MD1880 -
  • MD1960 -
  • MD2050 -
  • MD2140 -
  • MD2350 -
  • MD2450 -
  • MD2600 -
  • MD2800 -
  • MD3600 -
  • MD5500
Magnetic Dipoles

TECHNICAL PERFORMANCE

  • Low loss and high efficiency
  • Azimuth pattern symmetry is within ± 0.1 dB variation as specified by the CTIA for ripple testing according to the OTA Test Plan

DESIGN

  • End-fed sleeve dipole technology, minimizing cable and feed point interaction
  • Innovative choke design further reduces cable interaction by attenuating the natural return currents from the dipole
  • Azimuth pattern symmetry thanks to entirely symmetrical design

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Precision machined
  • High-reliability connector

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

  • High precision coaxial connector
  • Customizable magnetic dipoles kit for OTA/WiFi testing of mobile devices (optional)
