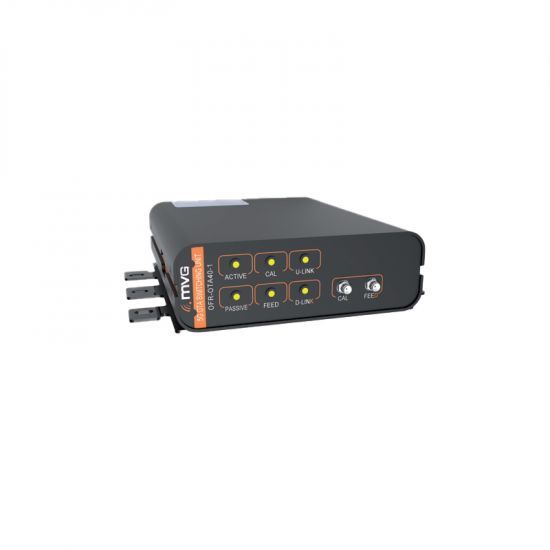

5G-OTA Switch Unit

0 MHz - 40000 MHz

5G RF units combine 3 mechanical SPDT switches for 5G measurements, and are designed to toggle between different operational modes:

  • Uplink /Downlink - RF signal can be amplified with internal ultra-broadband LNA 42 dB gain.
  • Passive/Active antenna measurements modes
  • Feed/Calibration mode

These RF units are designed to handle power levels up to 80W at a switching time of 10 ms (milliseconds).

Références:

  • OFR-OTA40-1
5G-OTA Switch Unit

KEY FEATURES

  • Low Loss, 1.2 dB max per switch
  • Switching time of 10 ms maximum
  • Power ratings of 80 W minimum
  • Life cycle of 2 million toggles
  • LVDS control logic

FREQUENCY RANGE

  • DC-40 GHz
