Rotary Positioners

Performance Series - AZ/EL/AZ Positioners: Heavy Duty

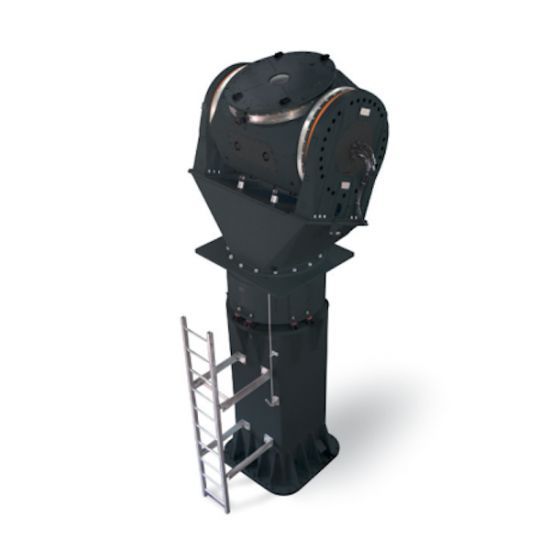

MVG Performance Series heavy duty AZ/EL/AZ positioners represent the latest generation of multi-axis rotary positioning subsystems with turntable diameters up to 70.9 in (1,800 mm). They offer enhanced capabilities and improved performance relative to size and incorporate new engineering advances.

参考文献:

  • AL-4586-1 -
  • AL-4590 -
  • AL-4587-1 -
  • AL-4588-1 -
  • AL-4589-1
Performance Series - AZ/EL/AZ Positioners: Heavy Duty

APPLICATIONS

  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor & Outdoor Use
  • Aircraft Measurements

KEY FEATURES

  • Vertical Loads Ranging from 18,000 to 41,195 lbs (8,165 to 20,500 kg)
  • Turntable Diameter Ranging from 30.0 to 70.9 in (762 to 1,800 mm)
  • Optimum Performance Relative to Size
  • Excellent Angular Position Accuracy
  • Low Backlash Design
  • Precision Bearings
  • Closed Loop Servo Control
  • Industry-Standard Wiring
  • Tachometers for Optimum Speed Regulation & Control
  • Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
  • Fully Enclosed Design of Drive Gear Train & Data Take-Off
  • Wide Variety of Available Options
