Broadband Pyramidal Absorber with Truncated Tip

80 MHz - 40000 MHz

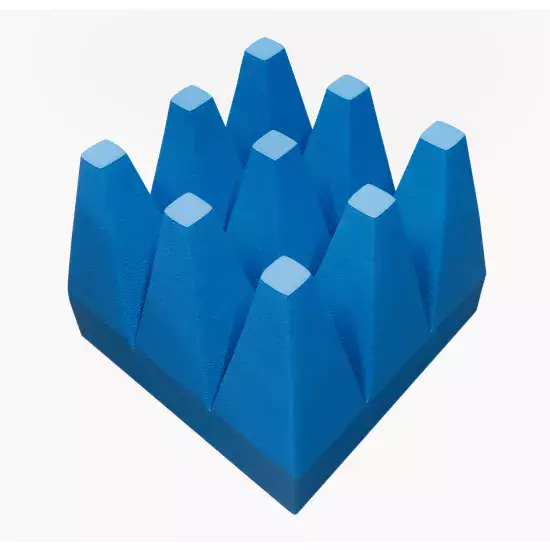

This particular absorber part AEP-26-TRN is of the pyramidal variety and has useful performance over the range 80 MHz to 40 GHz. Constructed from a 26” Pyramid, the truncated tip reduces the overall height of the pyramid to 24”.

参考文献:

  • AEP-26-TRN
Broadband Pyramidal Absorber with Truncated Tip

KEY FEATURES

  • Height: 24”
  • Length: 24”
  • Width: 24”
  • Weight: 12 Lbs. +/- 10% Humidity Factor
  • Material Tensile Strength: 10 psi

APPLICATIONS

  • EMC testing facilities
