Standard Absorbers

Convoluted Absorbers - AEC Series

3000 MHz - 30000 MHz

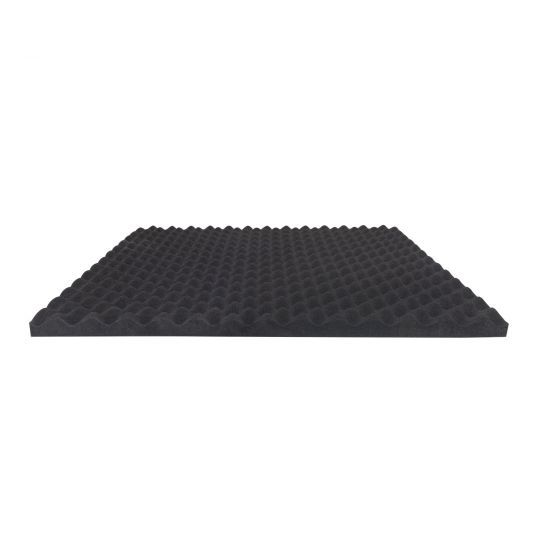

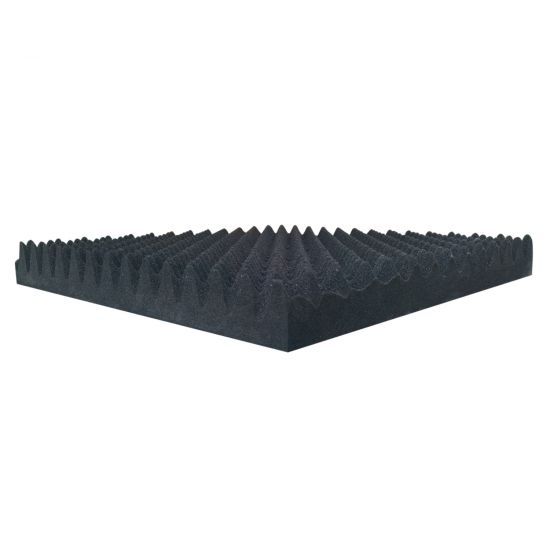

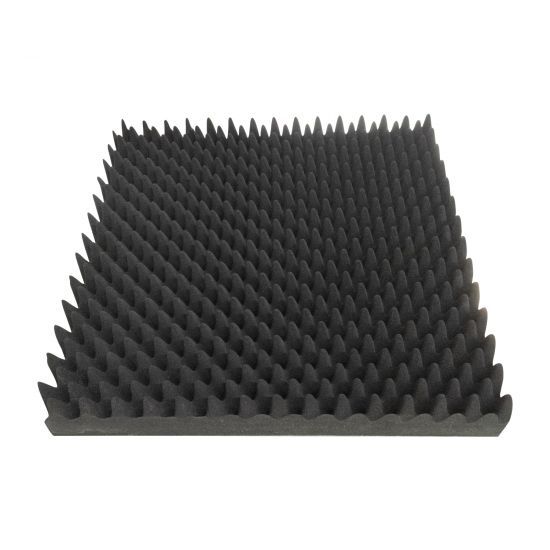

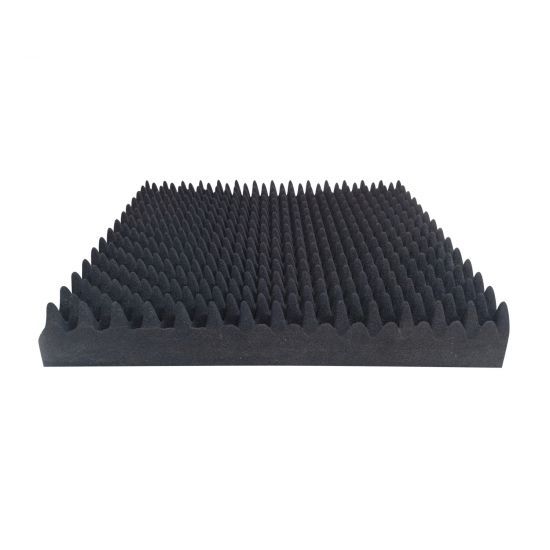

Broadband convoluted absorbers manufactured from lightweight urethane foam impregnated with a dielectric material. The front surface is rippled, providing a good match to the impinging wavefront. The convoluted material has properties desirable for applications requiring high reflectivity performance in conjunction with low forward scattering characteristics.

Références:

  • AEC-1.5 -
  • AEC-3 -
  • AEC-4

KEY FEATURES

  • Excellent attenuation properties
  • Good absorption characteristics

APPLICATIONS

  • RCS & antenna measurement chambers in the microwave & millimeter wave region

SHAPE

  • Convoluted

OPERATING CONDITIONS

  • Temperature: 70° F +/- 10° (21° C +/- 3°)
  • Relative humidity: 55 % RH +/-15 %

CERTIFICATIONS

  • NRL 8093 – 1, 2, 3

STANDARD BASE SIZE

  • 2’ x 2’ (60.96 cm x 60.96 cm)

HEIGHT

  • 1.5’’ to 4’’ (3.8 cm to 10.2 cm)
