Compact Antenna Test Range with New Shorter Focal Length for Heavy Duty Antenna Measurements

Retour aux ressources

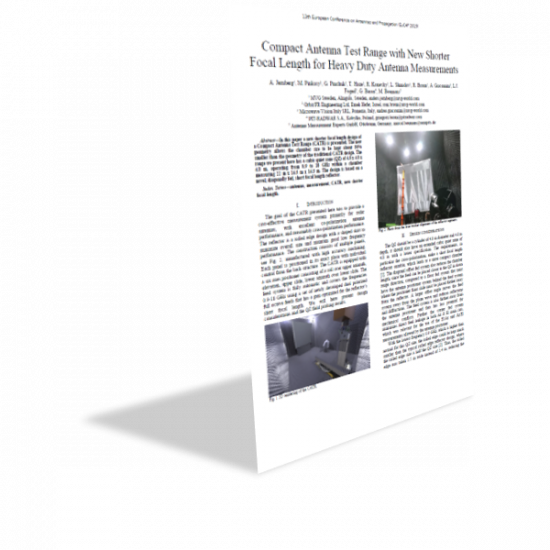

Compact Antenna Test Range with New Shorter Focal Length for Heavy Duty Antenna Measurements2.png

In this paper a new shorter focal length design of a Compact Antenna Test Range (CATR) is presented. The new geometry allows the chamber size to be kept about 50% smaller than the geometry of the traditional CATR design. The range we present here has a cubic quiet zone (QZ) of 4.8 x 4.8 x 4.8 m, operating from 0.9 to 18 GHz within a chamber measuring 22 m x 14.5 m x 14.5 m. The design is based on a novel, diagonally fed, short focal length reflector.
