Standard Absorbers

Pyramidal Absorbers - AEP Series

30 MHz - 40000 MHz

A broadband pyramidal absorber offering excellent absorption over a broad frequency range. Manufactured in two basic geometries, depending on size and performance requirements. Pyramidal absorbers are a conventional pyramid with a square base of uniform thickness, tapered to a point.

Références:

  • AEP-4 -
  • AEP-6 -
  • AEP-8 -
  • AEP-12 -
  • AEP-18 -
  • AEP-24 -
  • AEP-36 -
  • AEP-48 -
  • AEP-60 -
  • AEP-72 -
  • AEP-96

KEY FEATURES

  • Excellent absorption over a broad frequency range

APPLICATIONS

  • All chamber types: aerospace & defense, telecom, automotive, academic & research institutes

SHAPE

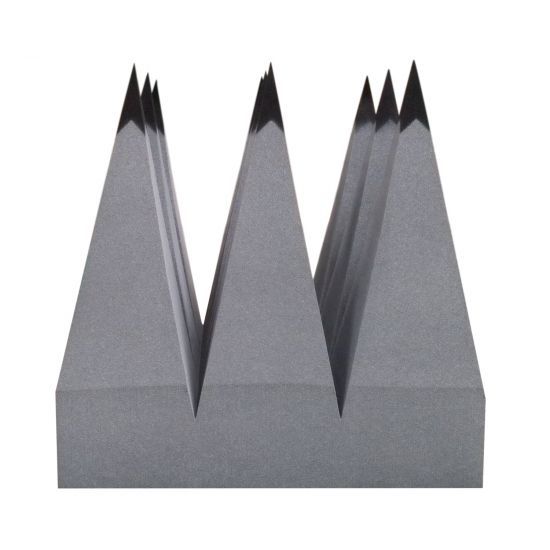

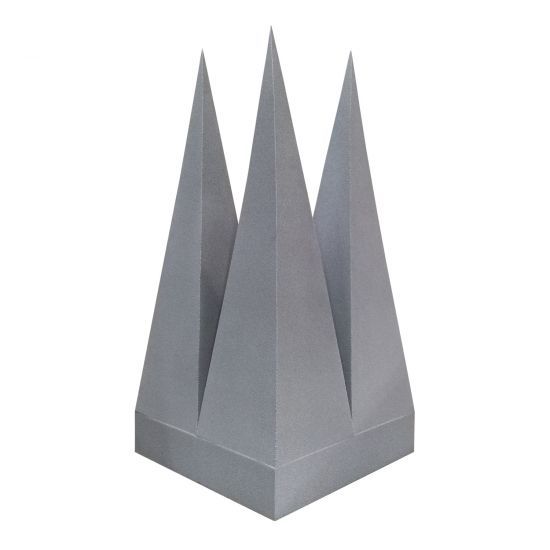

  • Conventional pyramid: AEP-4 to AEP-60

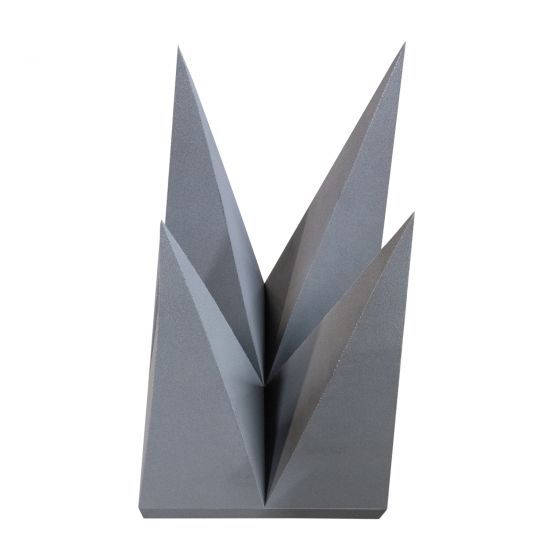

  • Twisted pyramid: AEP-36 to AEP-96, except AEP-60

OPERATING CONDITIONS

  • Temperature: 70° F +/- 10° (21° C +/- 3°)
  • Relative humidity: 55 % RH +/-15 %

CERTIFICATIONS

  • NRL 8093 – 1, 2, 3

STANDARD BASE SIZE

  • 2’ x 2’ (60.96 cm x 60.96 cm)

HEIGHT

  • 4’’ to 96’’ (10.2 cm to 243.8 cm)
