Clean Room RF Absorbers - AEP-X-CR Series

125 MHz - 18000 MHz

Clean Room RF Absorbers are treated for use in class 10,000 to 100,000 clean room environments. This treatment does not negatively affect the overall performance. These absorbers are used extensively in satellite assembly facilities as well as other aerospace applications.

References:

  • AEP-4-CR1/CR2 -
  • AEP-6-CR1/CR2 -
  • AEP-8-CR1/CR2 -
  • AEP-12-CR1/CR2 -
  • AEP-18-CR1/CR2 -
  • AEP-24-CR1/CR2 -
  • AEP-36-CR1/CR2 -
  • AEP-48-CR1/CR2
Clean Room RF Absorbers - AEP-X-CR Series

KEY FEATURES

  • For use in Class 100,000 clean room environments - AEMI CR1
  • For use in Class 10,000 clean room environments - AEMI CR2

APPLICATIONS

  • Satellite testing facilities
  • Space applications

SHAPE

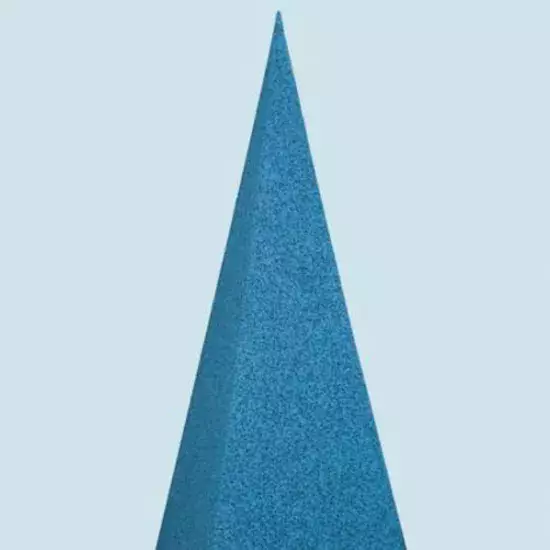

  • Pyramidal
  • Wedge
  • Flat
  • Convoluted

OPERATING CONDITIONS

  • Temperature: 70° F +/- 10° (21° C +/- 3°)
  • Relative humidity: 55 % RH +/-15 %

STANDARD BASE SIZE

  • 2’ x 2’ (60.96 cm x 60.96 cm)

HEIGHT

  • Standard: 4’’ to 48’’ (10.2 cm to 121.9 cm)
  • Custom sizes available up to 96’’ (243.8 cm)

CERTIFICATIONS

  • NRL 8093 – 1, 2, 3
  • FS209E
  • ISO14644

TREATMENT

  • CR1 - Latex coating
  • CR2 - Rubberized coating
