Specialty Absorbers
Hybrid Clean Room Absorbers
20.00 MHz – 40000.00 MHz

The hybrid clean room absorbers are coated in clear latex top and bottom for use in class 100,000 clean room environments. These absorbers are used extensively in satellite assembly facilities as well as other aerospace applications.



Reference:
AEPH-60-CR1
Key Features
  • Unique manufacturing process
  • Suited for Class 100, 000 clean room environments
Applications
  • Satellite testing facilities
  • Space applications

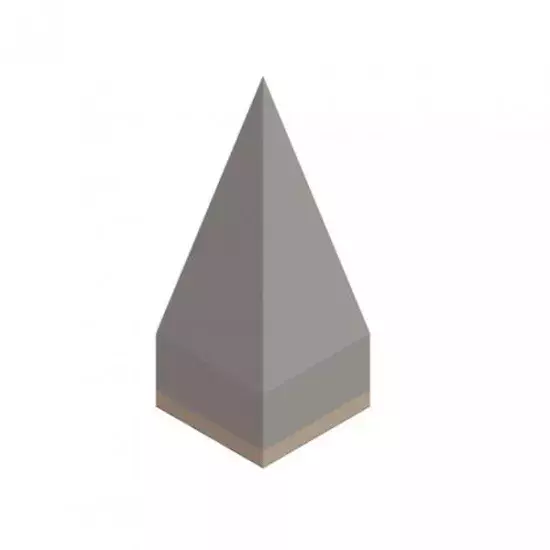

Shape
  • Pyramidal
Operating conditions
  • Temperature: up to 176°C (350° F)
  • Relative humidity: 55% RH +/-15%
Standard base size
  • 1.97' x 1.97' (60 x 60 cm)
Height
  • 63.75” (161.92 cm)
Treatment
  • Custom carbon-loaded top with no-load spacer specifically designed for use with ferrite tiles
  • Clear latex coating
Certifications
  • ANSI C63.4 (2000)
  • IEC/EN 61000-4-3
  • NRL 8093 – 1, 2, 3
  • CISPR 16, 22
  • MIL-STD 461/462
  • ISO14644
  • FS209E
