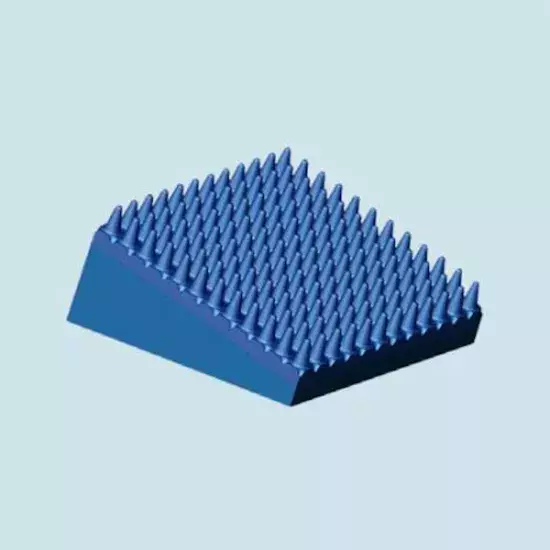

Millimeter Wave Absorbers - AEC-MM Series
12000.00 MHz – 95000.00 MHz

Millimeter wave tapered absorbers offering excellent reflectivity at normal incidence up to 55 dB. This product was developed for chamber applications where the main beam energy of the source antenna is focused on the sidewalls of the chamber as a result of its overall length.

Reference:
AEC-4/1-MM-HP, AEC-4/6-12T-MM, AEC-4/5-8T-MM, AEC-4-MM
Key Features
  • Optimized for millimeter wave operation
  • Excellent reflectivity at normal incidence up to 55 dB
Shape
  • Convoluted
Operating conditions
  • Temperature: 70º F +/- 10º (21º C +/- 3º)
  • Relative humidity: 55 % RH +/-15 %
Standard base size
  • 2’ x 2’ (60.96 cm x 60.96 cm)
Height
  • 5’’ to 12’’ (12.7 cm to 30.5 cm)
Certifications
  • NRL 8093 – 1, 2, 3
