Standard Absorbers

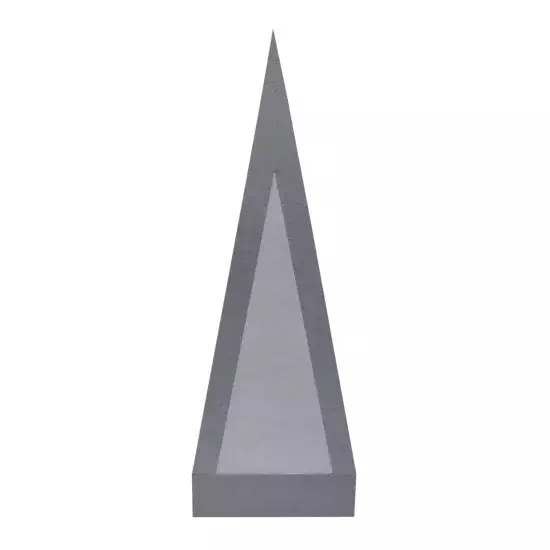

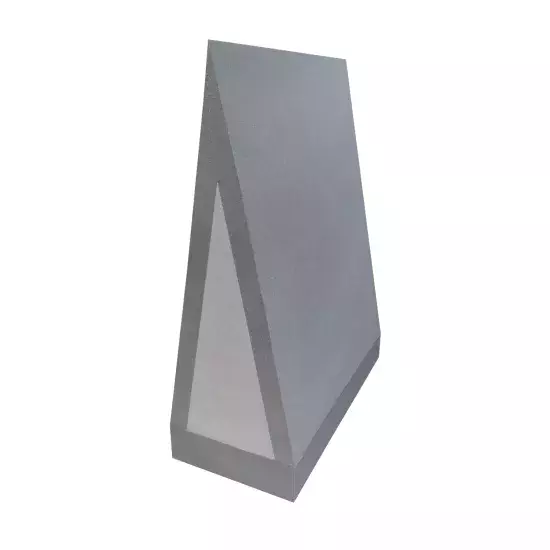

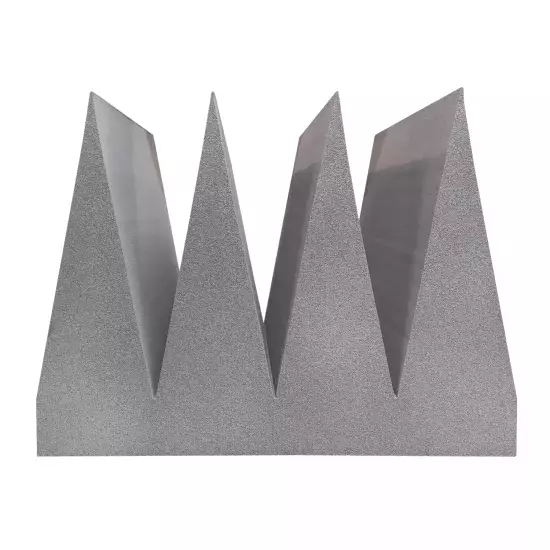

Wedge Absorbers - AEW Series
80.00 MHz – 18000.00 MHz

A full line of wedge materials to complement our pyramidal absorbers used to direct energy in a given path so that it can be efficiently absorbed by large, high performance materials. The wedge anechoic performance matches those of the pyramids, except that they are polarization sensitive.

Reference:
AEW-4, AEW-6, AEW-8, AEW-12, AEW-18, AEW-24, AEW-36, AEW-48
Key Features
  • Direct energy in a given path
  • Polarization sensitive
Applications
  • Rectangular, tapered, shaped wall and custom chambers
  • Compact ranges
Shape
  • Wedge
Operating conditions
  • Temperature: 70º F +/- 10º (21º C +/- 3º)
  • Relative humidity: 55 % RH +/-15 %
Certifications
  • NRL 8093 – 1, 2, 3
Standard base size
  • 2’ x 2’ (60.96 cm x 60.96 cm)
  • 2’ x 4’ (60.96 cm x 121.92 cm)
Height
  • 4’’ to 48’’ (10.2 cm to 121.9 cm)
