Compact Ranges

Rolled Edge Reflectors

700 MHz - 100000 MHz

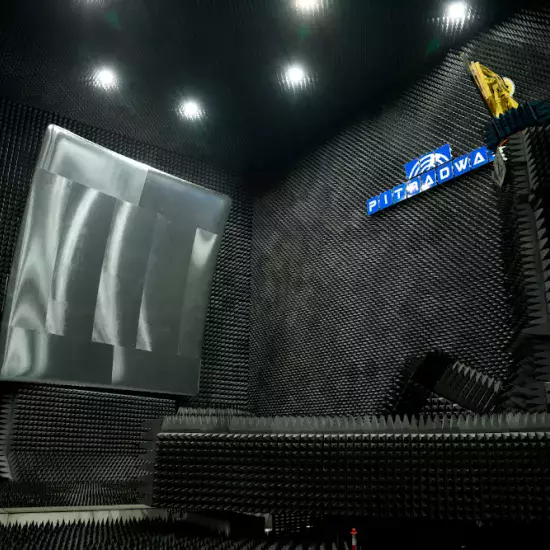

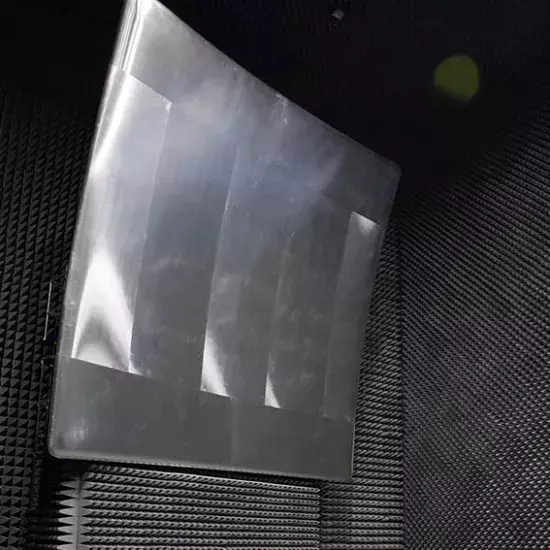

Rolled edge reflectors offer superior performance by redirecting energy illuminating the reflector edges into non-critical areas of the anechoic chamber. When appropriately redirected, this energy can dissipate without causing significant effects on quiet zone performance.

References:

  • AL-25101 -
  • AL-25202 -
  • AL-25303 -
  • AL-25404 -
  • AL-25606 -
  • AL-25808 -
  • AL-251010 -
  • AL-251212 -
  • AL-251216 -
  • AL-252020

KEY FEATURES

  • Superior Performance Over Serrated Edge Reflectors
  • Quiet Zones Up to 20 x 20 x 20 ft (6 x 6 x 6 m)
  • Quiet Zone Shape: Circular Cylindrical

FREQUENCY RANGE

  • 0.7 - 100 GHz
