AUT Switch Unit

100 MHz - 50000 MHz

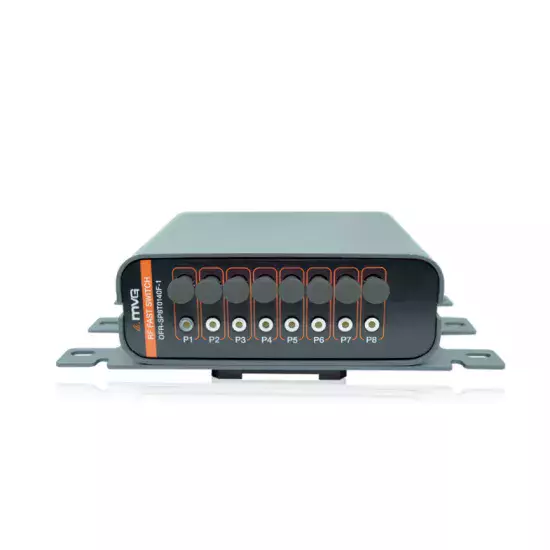

Broadband AUT PIN diode absorptive switches are designed for multi-port antenna measurement. Fast switching RF response time allows on-the-fly RF signal measurements synchronized with the positioning system movement. These RF switches are designed to handle power levels up to 100 mW at a switching time of 50 ns (nanoseconds), and can be operated using remote logic controls. The RF signals can be amplified with an internal broadband LNA.

References:

  • OFR-SP4T0105F-1 -
  • OFR-SP4T0518F-1 -
  • OFR-SP4T0140F-1 -
  • OFR-SP4T0140F-2 -
  • OFR-SP8T0120F-1 -
  • OFR-SP4T0150F-1 -
  • OFR-SP8T0518F-1 -
  • OFR-SP8T0140F-1 -
  • OFR-SP8T0140F-2 -
  • OFR-SP8T0150F-1 -
  • OFR-SP16T0518F-1 -
  • OFR-SP16T0140F-1 -
  • OFR-SP16T0140F-2 -
  • OFR-SP16T0150F-1
AUT Switch Unit

KEY FEATURES

  • Available configurations are SP4T, SP8T, SP16T, SP32T, SP64T
  • Switching time of 50 ns maximum
  • Power ratings of 20 dBm maximum
  • LVDS control logic

FREQUENCY RANGE

  • 0.1 - 50 GHz
