Antennas for High Power Applications

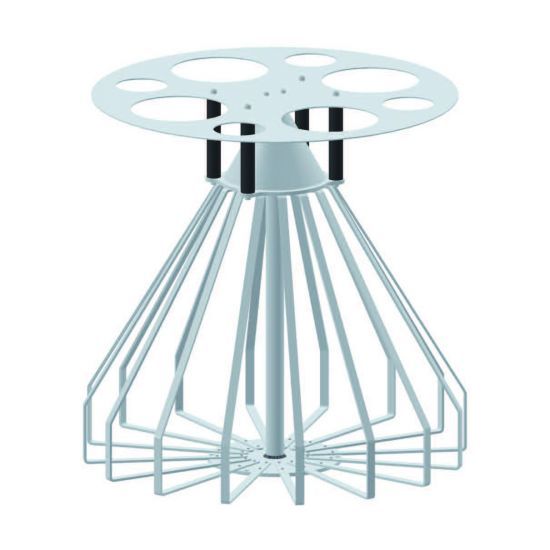

UWB Discone Antenna

100 MHz - 500 MHz

UWB Discone Antenna is a solution for high power ultra-wide band application.

References:

  • UWB010-A
UWB Discone Antenna

TECHNICAL PERFORMANCE

  • Radiates power uniformly in horizontal plane
  • Directive pattern shape in vertical plane
  • High power handling up to 200 W

DESIGN

  • Easy to install on a vehicle
  • Resists harsh environment conditions

DELIVERED DOCUMENTS

  • Conformity certificate (measured VSWR)
  • Instructions manual

RELATED STANDARD

  • MIL STD 810

EQUIPMENT

  • Wood storage case (Optional)
