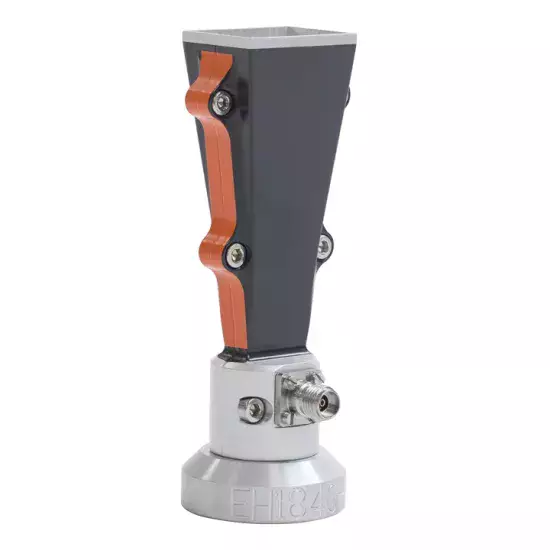

EMC Dual Ridge Horn Antenna (EH1840)

18000 MHz - 40000 MHz

The EH1840 EMC Horn combines stable gain performance and low VSWR with wide band frequency operation. The horn is single linearly polarized with excellent cross-polar discrimination. The unique horn design suppresses any possible excitation of higher order modes in the aperture and maintains a well-defined smooth radiation pattern in the direction of the boresight axis throughout the operational bandwidth.

References:

  • EH1840
EMC Dual Ridge Horn Antenna (EH1840)

TECHNICAL PERFORMANCE

  • Single linear polarization
  • Smooth / balanced gain with frequency
  • Low return loss / VSWR

DESIGN

  • Precision machined
  • Stiff/robust and lightweight mechanical design
  • High reliability k coaxial connector

DELIVERED DOCUMENTS

  • Technical Description Document

EQUIPMENT

  • Storage box
  • Standard axial mounting interface
