EMC Antennas

Log Periodic Antennas

30 MHz - 6000 MHz

Log Periodic Antennas are a solution for illumination of anechoic chambers and far-field antenna measurements.

References:

  • LP030 -
  • LP031 -
  • LP060 -
  • LP075 -
  • LP100 -
  • LP180 -
  • LP300 -
  • LP400 -
  • LP450 -
  • LP1000 -
  • LP2500 -
  • ELP250 -
  • ELP400

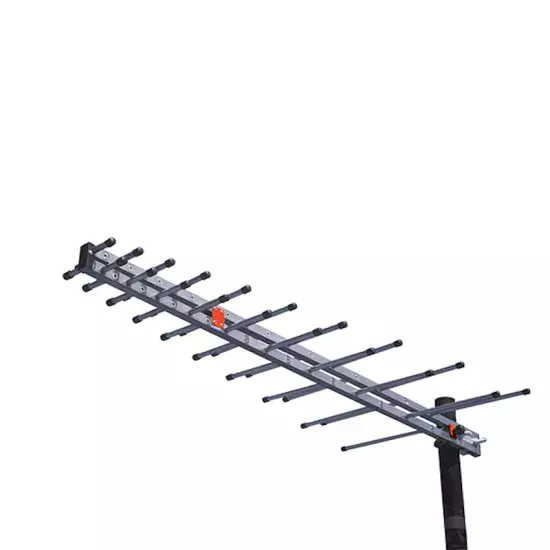

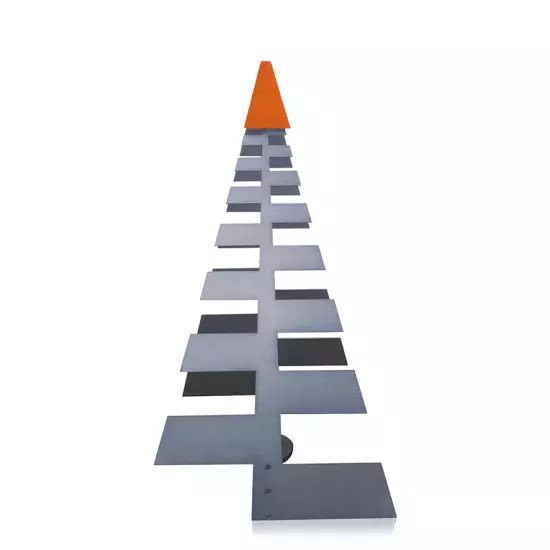

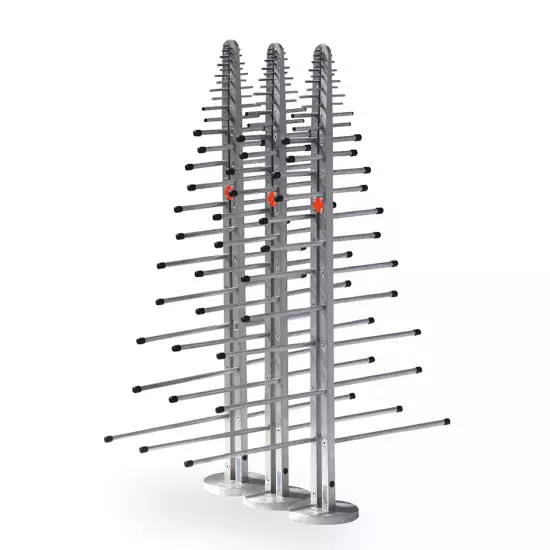

Log Periodic Antennas
Log Periodic Antennas
Log Periodic Antennas
Log Periodic Antennas
Log Periodic Antennas
Log Periodic Antennas

TECHNICAL PERFORMANCE

  • Low return loss
  • High front-to-back ratio
  • Constant gain with frequency

DESIGN

  • Lightweight
  • Minimum wind drag
  • For indoor and outdoor use

DELIVERED DOCUMENTS

  • Measured return loss data
  • Typical performance data (TYMEDA™)

EQUIPMENT

  • Brackets for pole mounting (Mounting flange available on specified models) Protective radome for high frequency models (optional)

REPEATABILITY

  • High reliability coaxial connector
  • Standard MVG circular interface for precision centering (only available on specified models)

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
