Measurement Probes and Feeds

Low Frequency Probes

100 MHz - 450 MHz

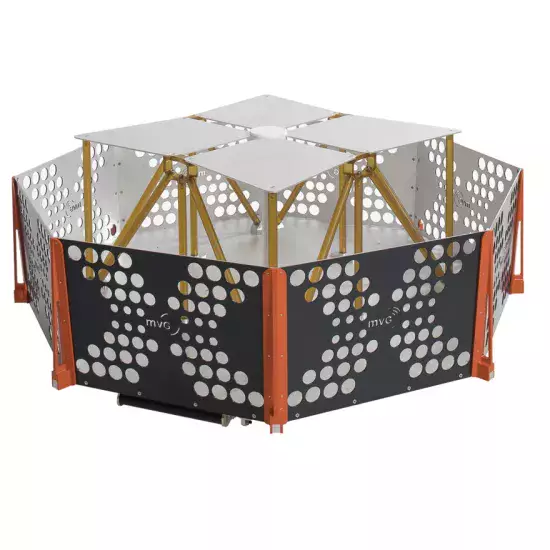

Low Frequency Probes are a solution for planar and spherical near-field low frequency measurement and illumination of CATR systems.

References:

  • LFP100 -
  • LFP200
Low Frequency Probes

TECHNICAL PERFORMANCE

  • Equalized beamwidth
  • Polarization purity
  • Port-to-port isolation
  • Low dispersion

DESIGN

  • Balanced feeding with external wideband feeding network
  • Compact, low profile
  • Stable radiation pattern over more than one octave bandwidth

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Standard MVG circular interface for precision centering
  • Precision machined
  • High reliability RF connectors

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data and port-to-port coupling

EQUIPMENT

  • Mounting flange
  • Integrated polarization switch (Optional)
