Measurement Probes and Feeds

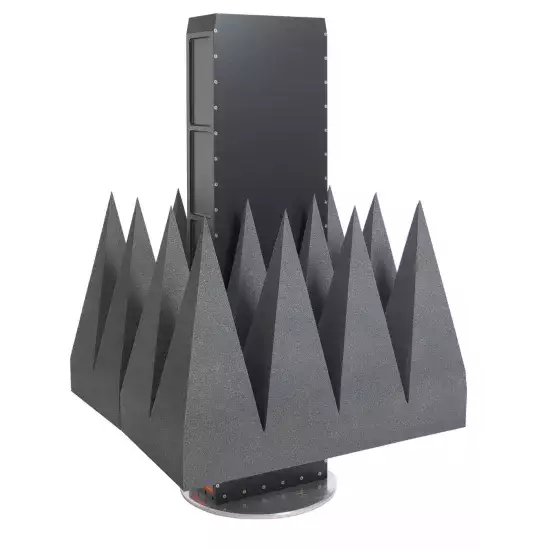

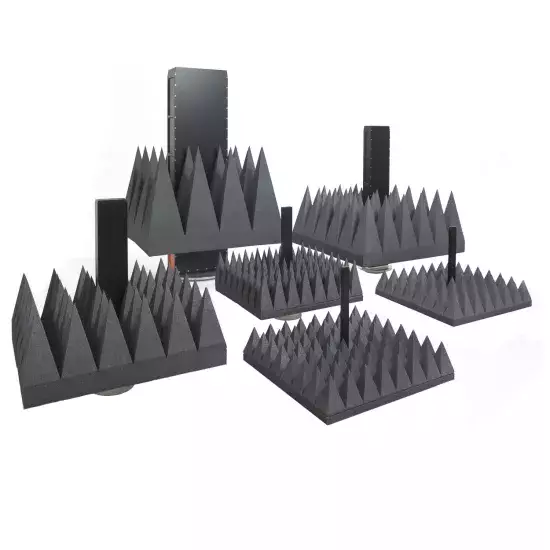

Open-Ended Waveguides

380 MHz - 110000 MHz

Open-Ended Waveguides are a solution for near-field measurements UHF to W band, calibration and polarization reference.

References:

  • OEW038 -
  • OEW049 -
  • OEW075 -
  • OEW096 -
  • OEW112 -
  • OEW145 -
  • OEW170 -
  • OEW220 -
  • OEW260 -
  • OEW330 -
  • OEW395 -
  • OEW490 -
  • OEW585 -
  • OEW705 -
  • OEW820 -
  • OEW1000 -
  • OEW1240 -
  • OEW1800 -
  • OEW2200 -
  • OEW2650 -
  • OEW3300 -
  • OEW5000 -
  • OEW6000 -
  • OEW7500

TECHNICAL PERFORMANCE

  • Low loss and high efficiency
  • Linear polarization with high polarization purity
  • Low return loss / VSWR

DESIGN

  • Tapered ends to minimize diffraction effects
  • Lightweight for easy handling
  • Standard waveguide bands

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Standard MVG circular interface for precision centering
  • Precision pin for accurate polarization alignment
  • Precision machined
  • High reliability coaxial connector

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

  • Mounting Flange
  • Integrated coaxial transition with high precision connector
  • Removable absorbers plate
