Reference Antennas

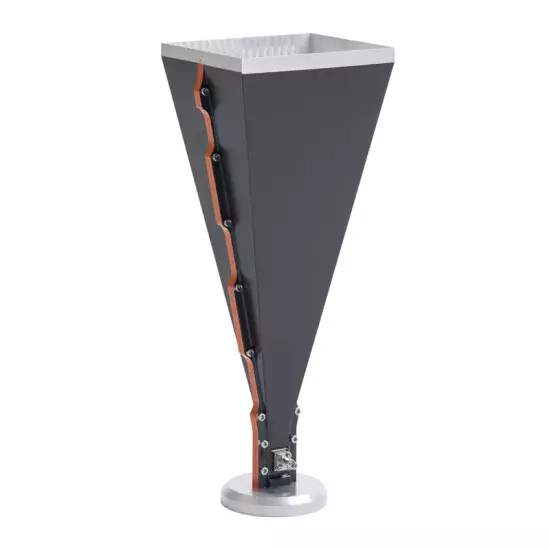

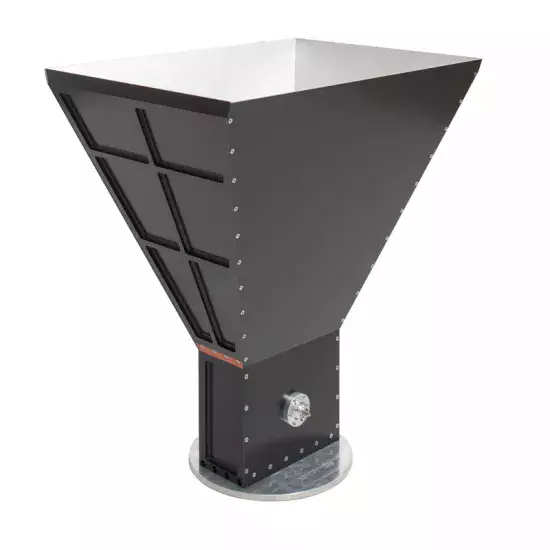

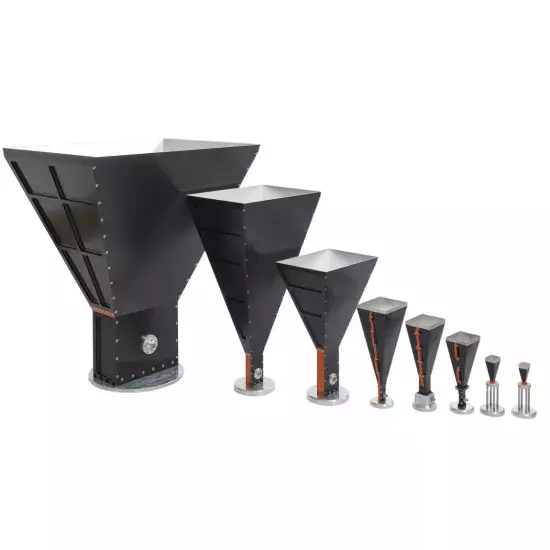

Standard Gain Horns

490 MHz - 110000 MHz

Standard Gain Horns are used for gain reference for high gain antennas and antenna measurements.

References:

  • SGH049 -
  • SGH075 -
  • SGH096 -
  • SGH112 -
  • SGH170-A -
  • SGH220 -
  • SGH260 -
  • SGH395 -
  • SGH585 -
  • SGH705 -
  • SGH820 -
  • SGH1000 -
  • SGH1240 -
  • SGH1800 -
  • SGH2200 -
  • SGH2650 -
  • SGH3300 -
  • SGH4000 -
  • SGH5000 -
  • SGH6000 -
  • SGH7500

TECHNICAL PERFORMANCE

  • Stable gain with frequency
  • Linear polarization
  • Low return loss / VSWR

DESIGN

  • Lightweight for easy handling
  • Designed to meet NRL-4433

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Standard MVG circular interface for precision centering
  • Precision pin for accurate polarization alignment
  • Precision machined
  • High-reliability coaxial connector

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

  • Mounting flange
  • Integrated coaxial transition with high precision connector
  • Protective radome for outdoor installation (optional)
