Rotary Positioners
Azimuth Positioners: Light Duty

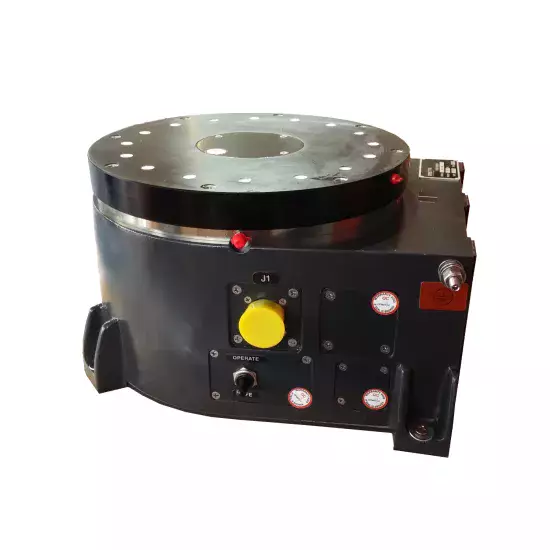

The MVG-Orbit/FR Legacy Series Azimuth Positioners provide accurate, balanced rotation, and controllable velocity. Their rugged yet straight-forward construction ensures maximum reliability and trouble-free operation, yielding the best size and weight/performance ratio.

Reference:
AL-061-1, AL-161-1, AL-461-1, AL-360-1,AL-560-1, AL-561-1, AL-760-1, AL-761-1
Applications
  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor & Outdoor Use (AL-260-1 & Smaller Indoor Only)
Key features
  • Operating loads up to 2000 lbs (910 kg)
  • Turntable Diameters Ranging from 2.6 to 12.6 in (66 to 320 mm)
  • Excellent Angular Position Accuracy
  • Low Backlash Design
  • Precision Bearings
  • Closed Loop Servo Control
  • Industry-Standard Wiring
  • Tachometers/Encoder for Optimum Speed Regulation & Control
  • Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
  • Fully Enclosed Design of Drive Gear Train & Data Take-Off
  • Wide Variety of Available Options
