Rotary Positioners

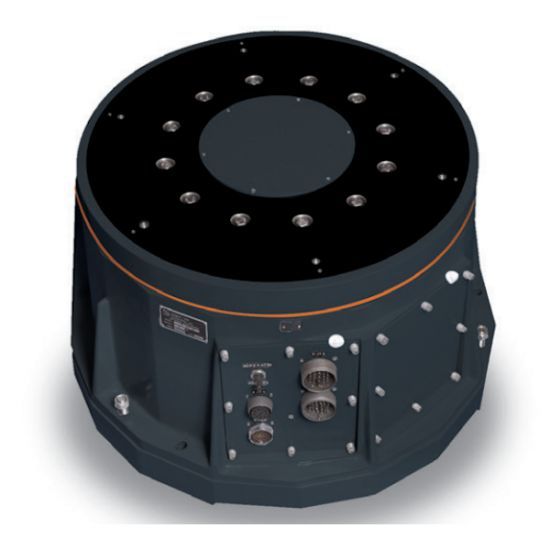

Azimuth Positioners: Medium Duty

MVG Series medium duty azimuth positioners provide accurate rotation, velocity, and direction and offer turntable diameters up to 30 in (686 mm). Rugged yet simple construction ensures maximum reliability and trouble-free operation.

Reference:
AL-860-1, AL-861-1, AL-862-1, AL-1260-1, AL-1262-1, AL-1760-1, AL-1762-1, AL-1763-1, AL-1770-1, AL-1790-1
Applications
  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor & Outdoor Use
Key features
  • Broad Selection – 10 Models
  • Vertical Loads Ranging from 8,800 to 30,000 lbs (3,990 to 13,610 kg)
  • Turntable Diameters Ranging from 20.3 to 30.0 in (516 to 762 mm)
  • Excellent Angular Position Accuracy
  • Low Backlash Design
  • Precision Bearings
  • Closed Loop Servo Control
  • Industry-Standard Wiring
  • Tachometers for Optimum Speed Regulation & Control
  • Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
  • Fully Enclosed Design of Drive Gear Train & Data Take-Off
  • Wide Variety of Available Options
Industries
  • Solutions for Academic & Research Institutes
  • Solutions for Aerospace & Defense
