Design of Dual Polarized Wide Band Plane Wave Generator for Direct Far Field Testing

Back to resources

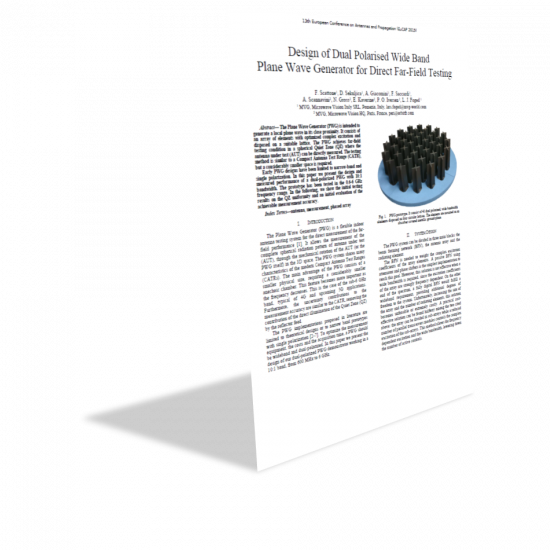

Design of Dual Polarised Wide Band Plane Wave Generator for Direct Far Field Testing_0.png

The Plane Wave Generator (PWG) is intended to generate a local plane wave in its close proximity. It consists of an array of elements with optimized complex excitation and disposed on a suitable lattice. The PWG achieves far-field testing condition in a spherical Quiet Zone (QZ) where the antenna under test (AUT) can be directly measured. The testing method is similar to a Compact Antenna Test Range (CATR), but a considerably smaller space is required.
Early PWG designs have been limited to narrow-band and single polarization. In this paper we present the design and measured performance of a dual-polarized PWG with 10:1 bandwidth. The prototype has been tested in the 0.6-6 GHz frequency range. In the following, we show the initial testing results on the QZ uniformity and an initial evaluation of the achievable measurement accuracy.
