Radar Cross Section Components

Radar Cross Section Measurement Solutions

MVG provides complete RCS Measurement Solutions, from data acquisition to post-processing, in test ranges such as:

  • Outdoor: Far Field (FF), Planar and Cylidrical Near Field (NF)
  • Indoor: Tapered Chamber, Plane Wave Generator (PWG), Compact Range (CR), and Planar/Cylindrical Near



Our fully integrated, turnkey systems are designed and built in-house to ensure high accuracy, system-level performance, and seamless integration with evolving testing needs.

See the references
Radar Cross Section Measurement Solutions

References

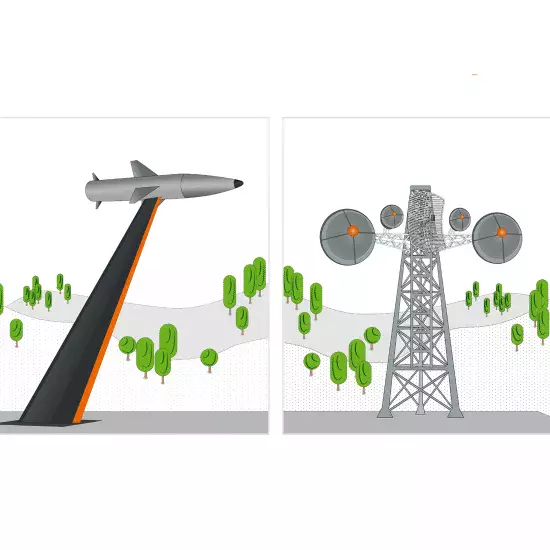

Far-field (FF)

Far-field (FF)

Outdoor Ranges

Specifications

Frequency

  • 0.4 - 18 GHz (typically)



Pylon

  • Changeable pylon tips for different measurement targets
  • Pylon can be concealed within the concrete reaching into ground level for ease of target mounting



Adjustable Height Tx/Rx Station

  • Different antenna height configurations, depending on target distance and frequency allows better ground bounce control



Clutter Control

  • Different possible radar fence configurations for reduce ground bounce effect



Control Room

  • Can be facilitated as fixed ground station or mobile down range vehicle

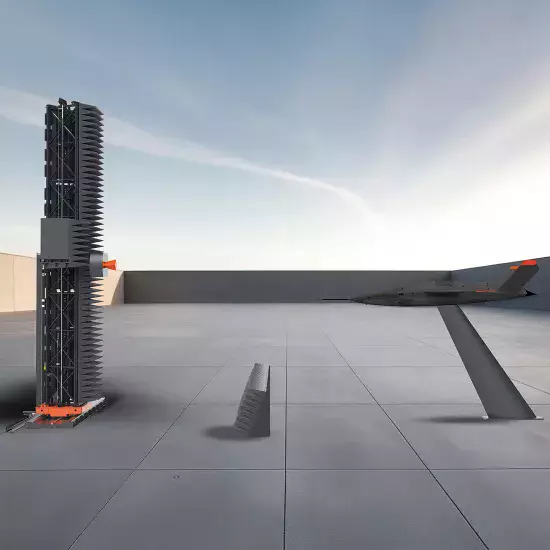

Planar and Cylindrical Near-Field (CNF)

Planar and Cylindrical Near-Field (CNF)

Outdoor Ranges

Specifications

Frequency

  • 0.4 - 18 GHz (typically)



Target

  • Full-scale target measurement at short distances
  • Applicable to both model and real targets – as-is / before take-off
  • Fast check of platform RCS configuration
  • Maintenance purposes during platform life cycle



Measurement Configuration

  • SAR vertical scan (2D) in front of the target by means of Y tower scanner
  • ISAR complete 3D scan by means of Y tower scanner and Pylon (AZ/EL)

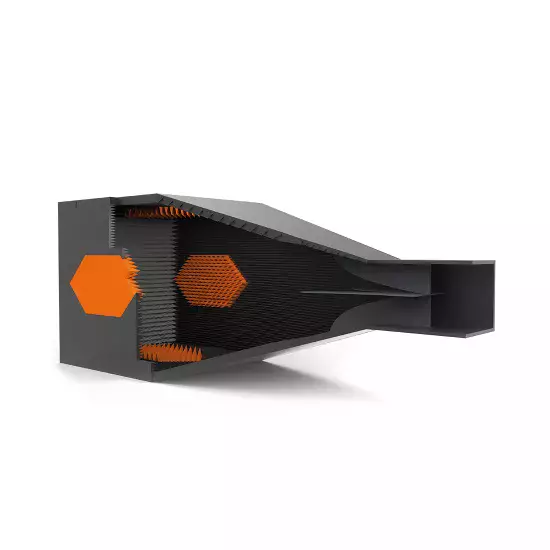

Tapered Chamber

Tapered Chamber

Indoor Ranges

Specifications



Frequency

  • Tapered walls design minimize internal reflections by directing stray signals towards chamber back wall



Reduced reflectivity

  • 0.1 - 2 GHz



Clutter control

  • Fewer multiple reflections and reduced background noise, improving signal-to-noise ratio



Integrated tapered feed

  • For high cross pol and planar wave front control performances

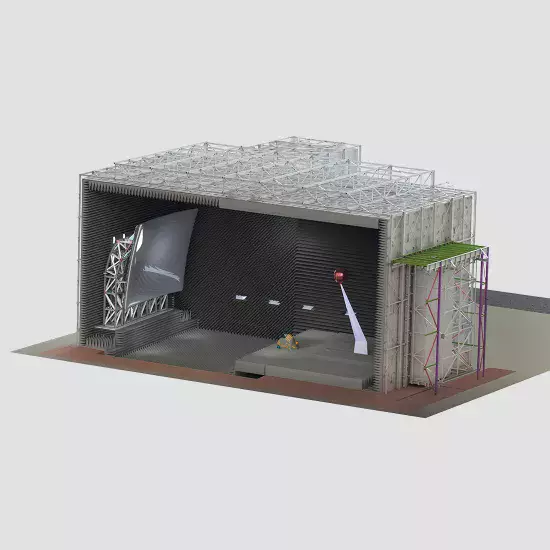

Compact Range

Compact Range

Indoor Ranges

Specifications

Frequency

  • 0.7 - 110 GHz (typically)



Capabilities

  • Broadband coverage across the complete frequency range (0.7 - 110 GHz)
  • Automatic feed selection for continuous full frequency coverage
  • High system dynamic range and high sensitivity
  • High cross polar performances



Flexible and modular target positioning

  • Pylon, Styrofoam, etc.



Reflector

  • High surface accuracy to support mm-wave measurements

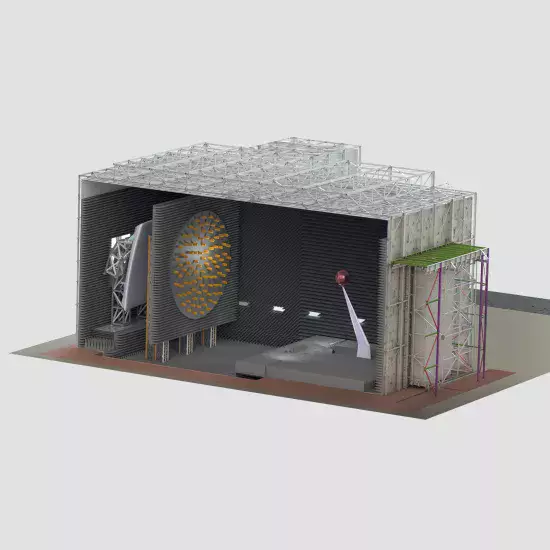

Plane Wave Generator (PWG)

Plane Wave Generator (PWG)

Indoor Ranges

Specifications

Frequency

  • 0.1 - 1.0 GHz | Sub 6 GHz (typically)



Capabilities

  • Gain
  • Beamwidth
  • Sidelobe levels
  • Radiation pattern in any polarizations (linear or circular) and cross-polarization
  • Radome measurement
  • Directivity
  • 2D and 3D radiation patterns
  • RCS measurement
  • EIRP and G/T

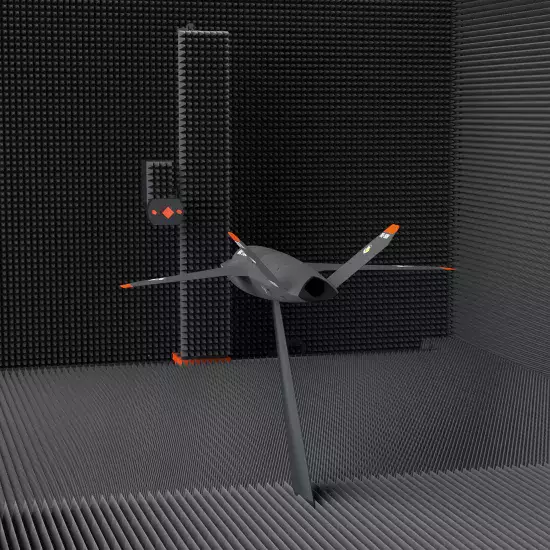

Planar / Cylindrical Near-Field

Planar / Cylindrical Near-Field

Indoor Ranges

Specifications

Frequency

  • 0.1 - 1.0 GHz (typically)



Capabilities

  • Near-field to far-field correction in the ISAR software tool allows focalization of the radar image
  • Effectively mitigate clutter through advanced data processing techniques and high-resolution capabilities



Compact Test Environment

  • NF RCS ranges require much less physical space than traditional far-field ranges, making them ideal for indoor labs, production environments, or urban locations



Cost Efficiency

  • By avoiding long distances needed in far-field setups, NF RCS ranges reduce infrastructure and operational costs



Enhanced Measurement Flexibility

  • The test setup allows for multi-angle and multi-polarization scanning, and can handle complex test scenarios



SAR and ISAR Imaging Capabilities

  • NF RCS systems can generate SAR (Synthetic Aperture Radar) and ISAR (Inverse Synthetic Aperture Radar) images, providing high-resolution radar imagery of static or moving targets
    - SAR allows imaging by virtually moving the radar around a stationary target
    - ISAR captures images of a moving target using its motion to synthesize the aperture.These capabilities are invaluable for feature identification, scattering analysis, and target classification

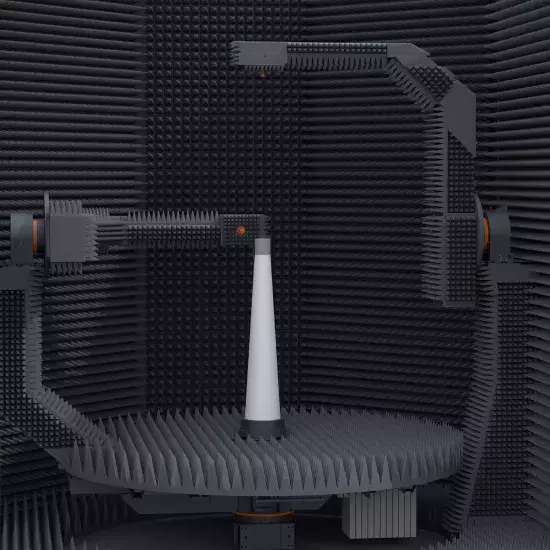

Dual Gantry Bi-Static RCS (Material)

Dual Gantry Bi-Static RCS (Material)

Indoor Ranges

Specifications

Frequency

  • 1.0 - 40.0 GHz (typically)



Capabilities

  • Equal radius gantry arms
  • Incorporates an anti-collision safety features
  • Antenna measurement
  • Monostatic / bi-static SER and diffracted filed measurements, for material samples as a function of aspect angle and frequency, and diagnostic radar imaging for energy absorption uniformity verification
  • Reflection coefficient of planar RAM/material samples as a function of incidence angle and frequency band in bi-static configuration or mono-static configuration at normal incidence
  • Insertion loss (transparency) of material/FSS planar samples as a function of incidence angle and frequency, with rotation of the sample
