Positioning Antennas

GALILEO / GPS - Base Station Reference Antenna

1228 MHz - 1575 MHz

GALILEO / GPS - Base Station Reference Antenna is a solution for reference applications covering GALILEO E5, E6, L1 bands and GPS L5, L2, L1 bands

References:

  • ANTE010-A

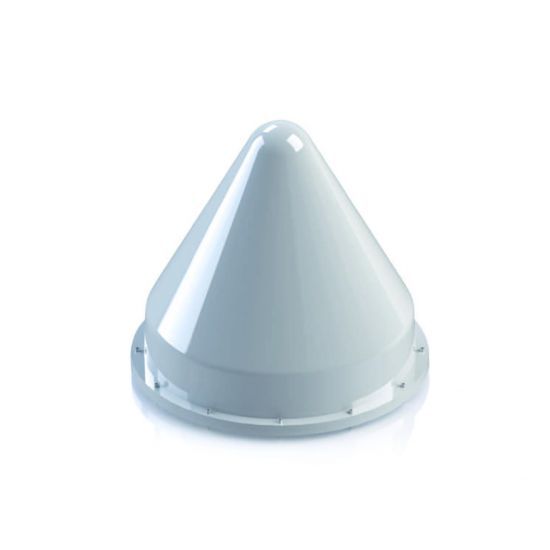

GALILEO / GPS - Base Station Reference Antenna

TECHNICAL PERFORMANCE

  • Excellent phase center and group delay stability
  • Highly stable radiation pattern (magnitude & phase)
  • Optimized radiating element combined with a choke ring provides increased multi-path immunity
  • Wide bandwidth of the radiating helix
  • Reduced ohmic losses (< 1.0 dB)

DESIGN

  • Sealed radome resists extreme weather conditions
  • High-performance LNA connector
  • Reduced accommodation (easy to install at the top of a mast)
  • Integrated thermo-regulation for polar applications (down to -60°C)
  • Dedicated filters for out-of-band rejection and dedicated LNA for pre-amplification

DELIVERED DOCUMENTS

  • Measured return loss
  • Measured radiation pattern
  • Phase center calibration report

RELATED STANDARD

  • IEC 60068 -2/14; -2/6; -2/64; 2/32
  • EN 55022

EQUIPMENT

  • Specific radome
