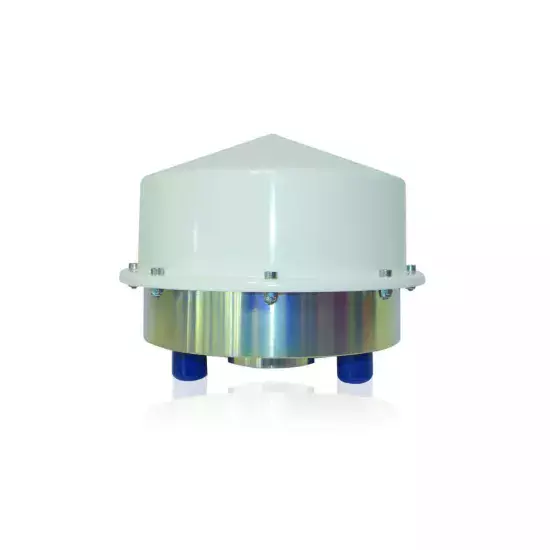

Professional GALILEO / GPS Terminal Antenna

1228 MHz - 1575 MHz

Professional GALILEO / GPS Terminal Antenna is a solution for ground segment portable antenna for professional applications covering GALILEO E5, E6, L1 bands and GPS L5, L2, L1 bands.

References:

  • ANTE005-A
Professional GALILEO / GPS Terminal Antenna

TECHNICAL PERFORMANCE

  • Excellent phase center and group delay stability
  • Optimized multi-path immunity
  • Stable radiation pattern
  • Reduced ohmic losses (< 1.2 dB)
  • Tri-frequency version available (separated Galileo E5/GPS L5 band, Galileo E6 band and Galileo L1/GPS L1 sub-bands)

DESIGN

  • Reduced accommodation - easy to install at the top of a mast
  • Lightweight (980 g), easy to transport
  • Sealed radome and environmentally robust design - resists temperature, shocks and vibrations
  • Dedicated filters for out-of-band rejection and dedicated LNA for pre-amplification

DELIVERED DOCUMENTS

  • Measured return loss
  • Measured radiation pattern
  • Phase center calibration report

RELATED STANDARD

  • IEC 60068-2/14; -2/6; -2/64; 2/32
  • EN 55022
  • IEC 60529

EQUIPMENT

  • Specific radome
  • Dedicated filters for custom GALILEO and/or GPS sub-bands (Optional)
