Reference Antennas

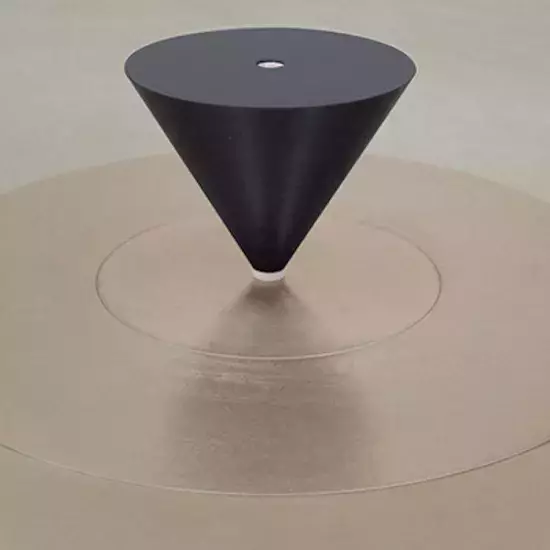

Monocones

70 MHz - 6000 MHz

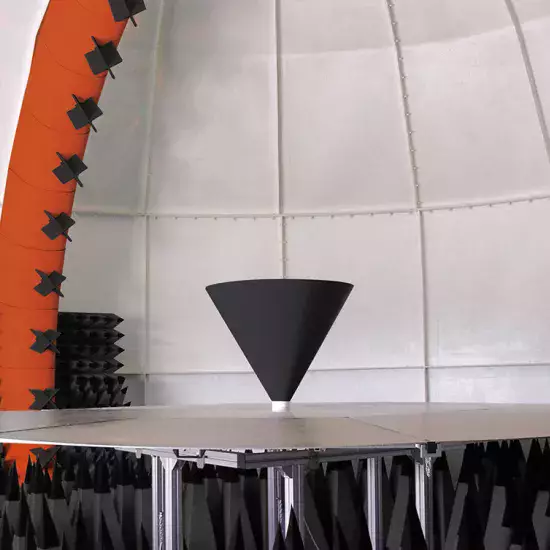

Monocones are a solution for wideband gain reference and particularly suitable for automotive test ranges.

References:

  • SMC70 -
  • SMC220 -
  • SMC700 -
  • SMC2200 -
  • GP40 -
  • GP60 -
  • GP100 -
  • GP400

TECHNICAL PERFORMANCE

  • Low loss and high efficiency
  • Azimuth pattern symmetry
  • Wide bandwidth

DESIGN

  • Precision circular flange to mate with MVG ground planes
  • Axially symmetrical design

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Minimum use of dielectric material
  • Precision machined
  • High-reliability connector

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

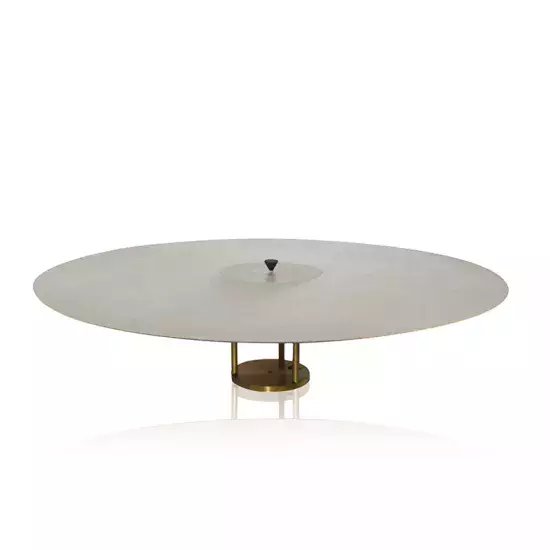

  • High precision circular ground plane
