Telecommunication Antennas

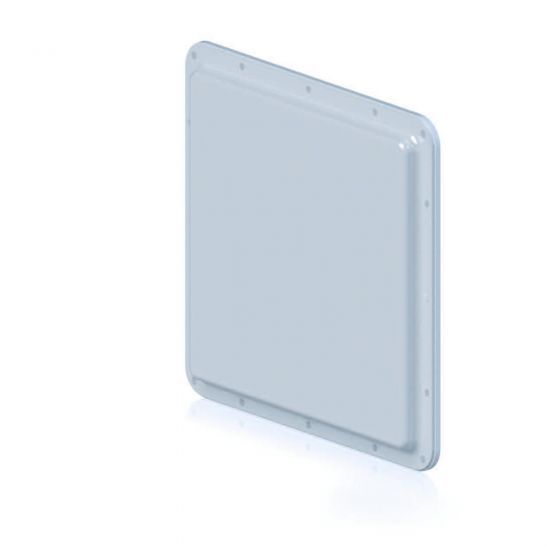

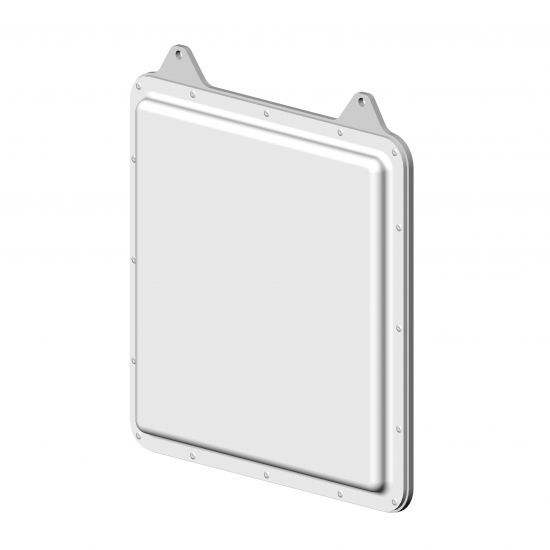

Planar Antennas for WLAN Application

2100 MHz - 5875 MHz

Planar Antennas for WLAN Application are a solution for general transmitting and receiving applications from 2.1 to 5.8 GHz, radar doppler and radio link point-to-point.

References:

  • PA210-A -
  • PA220-A -
  • PA580-A
Planar Antennas for WLAN Application

TECHNICAL PERFORMANCE

  • Optimized gain
  • Handling power up to 20 W
  • Supports long range point-to-point secure  communications links
  • Low profile shape ideal for covert tactical military applications

DESIGN

  • Easy to integrate in existing installations
  • Connector on the back

DELIVERED DOCUMENTS

  • Conformity certificate (measured VSWR)

RELATED STANDARD

  • IEC 60068

EQUIPMENT

  • Mast mount (Optional)
  • Wall mount (Optional)
