Rotary Positioners
Polarization Positioners: Medium Duty

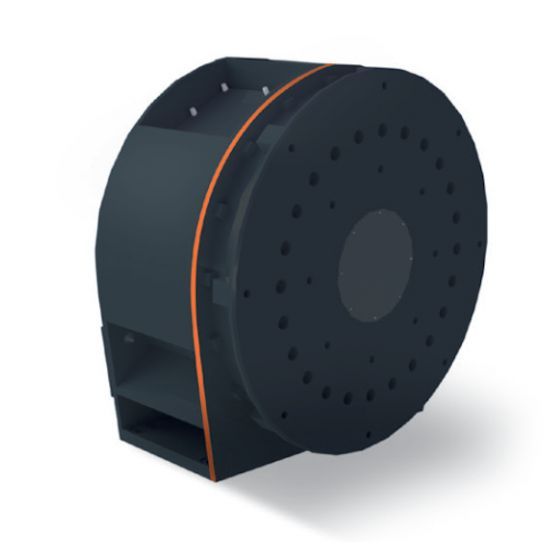

The MVG-Orbit/FR Legacy Series Polarization Positioners provide accurate, balanced rotation, and controllable velocity for the positioning of devices in test configurations. Their sturdy and straight-forward construction ensures maximum reliability and trouble-free operation, yielding the best size and weight/performance ratio.Turntable diameters up to 30.0 in (762 mm) .

Reference:
AL-860-1P, AL-860-1P15, AL-860-1P30, AL-1260-1P, AL-1260-1P15, AL-1260-1P30, AL-1760-1P, AL-1770-1P, AL-1790-1P
Applications
  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor & Outdoor Use
Key Features
  • Broad Selection - 9 Models
  • Operating Loads Ranging from 4,000 to 20,000 lbs (1,810 to 9,070 kg)
  • Turntable Diameter Ranging from 20.3 to 30.0 in (516 to 762 mm)
  • Excellent Angular Position Accuracy
  • Low Backlash Design
  • Precision Bearings
  • Closed Loop Servo Control
  • Industry-Standard Wiring
  • Tachometers for Optimum Speed Regulation & Control
  • Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
  • Fully Enclosed Design of Drive Gear Train & Data Take-Off
  • Wide Variety of Available Options
Industries
  • Solutions for Academic & Research Institutes
  • Solutions for Aerospace & Defense
