Multi-probe Systems

SG 128

400 MHz - 18000 MHz

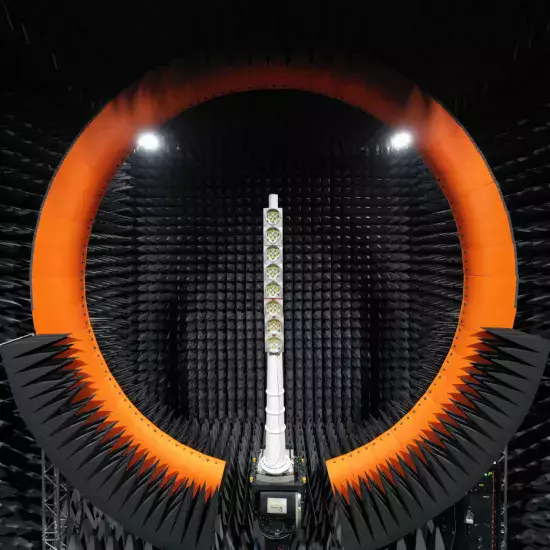

Ideal for very large antenna measurements. SG 128 is a bigger version of the SG 64 with 127 probes (+1 reference channel) and is particularly adapted to the measurement of BTS antennas.

References:

  • SG128-6 -
  • SG128-18
SG 128

MEASUREMENT CAPABILITIES

  • Gain
  • Directivity
  • Beamwidth
  • Cross-polar discrimination
  • Sidelobe levels
  • Front to back ratio
  • 1D, 2D, 3D radiation patterns
  • Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency

FREQUENCY RANGE

  • SG 128-6: 0.4 to 6 GHz
  • SG 128-18: 0.4 to 18 GHz

MAX. SIZE OF DUT

  • 4.16 m

MAX.WEIGHT OF DUT

  • 200 kg

TYPICAL DYNAMIC RANGE

  • 70 dB

OVERSAMPLING

  • Elevation tilt of the DUT
