Positioning Antennas

GNSS Antennas for Embedded Applications

1143 MHz - 1596 MHz

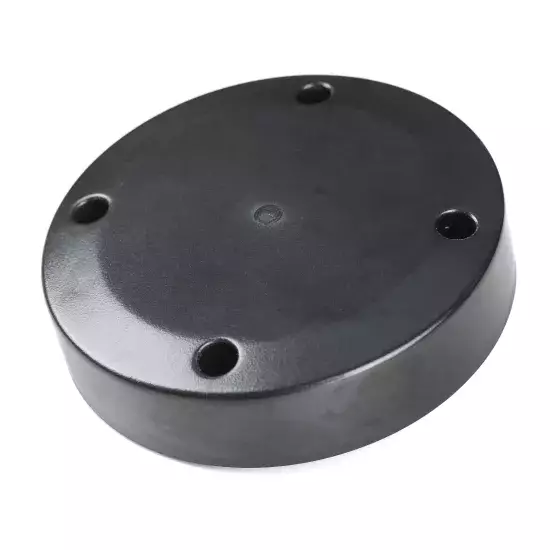

GNSS Antennas for Embedded Applications are a solution for the positioning of equipment for land, aerospace and maritime applications.

References:

  • PO156-A -
  • 304-039 -
  • 304-063 -
  • 304-066 -
  • 304-071 -
  • 304-073 -

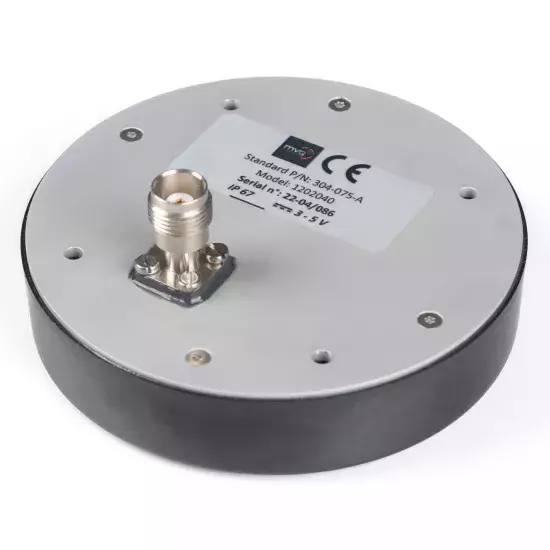

  • 304-075 -

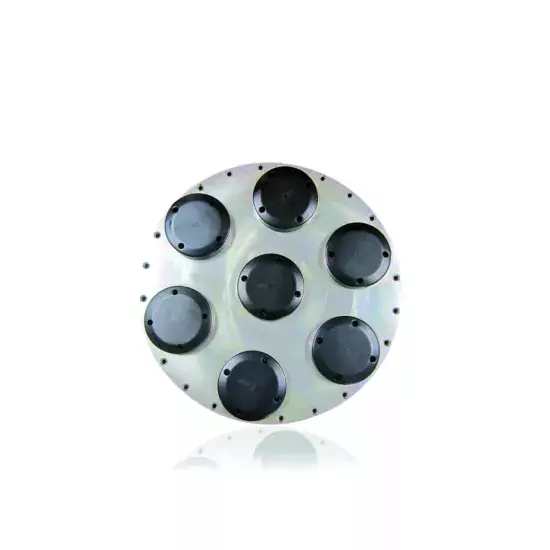

  • CRPA304-039 -
  • CRPA304-075

TECHNICAL PERFORMANCE

  • Hemispherical pattern
  • Low profile
  • Multi-path immunity
  • Wideband or multi-band behavior

DESIGN

  • Resists harsh environmental conditions

DELIVERED DOCUMENTS

  • Conformity certificate (measured VSWR)
  • Instructions manual
  • Measured radiation patterns

RELATED STANDARD

  • MIL STD 810
  • GAM EG 13
  • RTCA DO-160/ EUROCAE - ED14

EQUIPMENT

  • Single radiated element on ground plane
  • Integrated mounting flange
